A rewarding weekend project — if you plan it right.
Installing a whole house water filter is one of the most satisfying home improvement projects a confident DIYer can tackle. When it’s done, every tap, shower, and appliance in your home delivers filtered water. No more cartridges under every sink, no more separate pitcher filters, no more worrying about what’s coming out of the line you hooked your refrigerator ice maker to.
It’s also a project that rewards careful preparation. Unlike hanging a shelf or painting a room, a plumbing mistake announces itself immediately and memorably — usually by soaking the floor. The good news: there’s nothing technically difficult here. The skills involved are basic plumbing, and with the right tools and a methodical approach, most homeowners can complete a whole-house filter installation in three to four hours.
Here’s how to do it correctly from the start.
Before You Begin
Gather Your Tools and Materials
Before turning off a single valve, have everything on hand. Mid-installation hardware store runs are the enemy of a smooth project.
Tools:
- Pipe cutter (for copper) or reciprocating/hacksaw (for CPVC or PEX)
- Adjustable wrench and channel-lock pliers
- Torch and solder (for copper sweat fittings) or a PEX crimping tool
- Drill and drill bits (for mounting brackets)
- Bucket and towels (for draining residual water from pipes)
- Marker or pencil (for marking cut locations)
- Level (for ensuring the system hangs straight)
Materials:
- The filter system and all included fittings (inventory the box before starting)
- Teflon tape (PTFE thread seal tape) — use this on every threaded connection
- Fittings appropriate to your pipe material: compression fittings are the easiest and require no special tools; push-to-connect fittings (like SharkBite) are even simpler but cost more
- Bypass valve assembly (some systems include one; others require it to be purchased separately — confirm before installation day)
- Shut-off valves (ball valves, one on each side of the filter)
- Flexible braided supply lines or short sections of pipe to bridge between your main line and the filter
Plan Your Installation Location
Choosing the right location is as important as the installation itself. The filter must be installed:
- After your main shutoff valve — so you can still shut off water to the whole house without bypassing the filter
- Before the water heater — hot water accelerates filter media degradation; you want to filter cold water only
- Before any branch lines — to ensure every fixture in the house receives filtered water
- In a temperature-controlled space — filter housings can crack if exposed to freezing temperatures; garages and crawl spaces require insulation in cold climates
Practically, this is usually in a basement, utility room, or garage near where the main supply line enters the house. Confirm you have enough clearance to remove filter housings for cartridge changes — typically 6–10 inches below the bottom of the housing — and that the wall can support the mounting bracket under the weight of a water-filled system.
Measure and mark your cut points before touching any pipe.
Install a Bypass — Don’t Skip This
A bypass valve is a loop of pipe with valves that allows water to flow around your filter system when it’s offline for maintenance. Without one, every time you need to change a filter cartridge or service the system, you have to shut off water to the entire house.

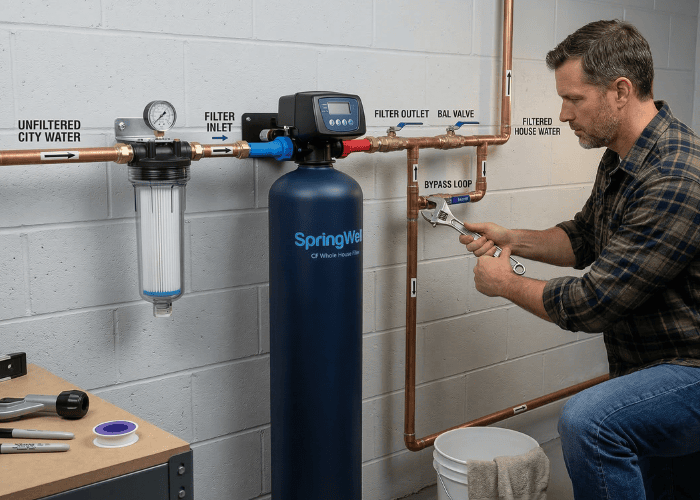

A proper bypass configuration uses three ball valves: one on the inlet side of the filter, one on the outlet side, and one on the bypass loop connecting inlet to outlet. When the filter is in service, the two inline valves are open and the bypass valve is closed. During maintenance, reverse them — close the two inline valves, open the bypass — and water flows around the system while you work.
This adds thirty minutes to your installation and is worth every minute of it.
Step-by-Step Installation
Step 1: Shut Off the Main Water Supply and Relieve Pressure
Turn off your home’s main shutoff valve completely. Then open a tap — ideally a low point in the house like a basement utility sink or an outdoor hose bib — to drain residual water from the lines and relieve pressure. The pipes won’t be completely dry, but draining them significantly reduces the volume of water that spills when you make your cuts.
Place towels and a bucket under your work area. Even with draining, expect some spillage.
Step 2: Cut the Pipe at Your Marked Location
Using your pipe cutter (for copper) or appropriate saw (for CPVC or PEX), make clean, square cuts at the two points you marked. A pipe cutter is strongly preferred over a hacksaw for copper — it produces a clean, burr-free edge that makes for a better seal.
Cut out enough pipe to accommodate the length of your filter system plus valves and fittings, with a small amount of working room. Measure twice. The most common installation mistake is cutting out too little pipe and not having enough room to work with fittings.
Deburr the cut ends with the reamer on your pipe cutter or a piece of sandpaper. For copper, clean the pipe ends and fittings with emery cloth until they’re bright — this is essential for a good solder joint.
Step 3: Dry-Fit Everything First
Before applying any solder, adhesive, or permanent connection, assemble the entire installation dry — filter system, valves, fittings, and bypass — and confirm it all fits. This is the single most time-saving step in the guide.
Check that:
- The filter system’s inlet and outlet are correctly oriented (flow direction matters and should be marked on the housing)
- All fittings align without stress on the pipe or the filter’s ports
- The bypass assembly fits in the available space
- Mounting bracket positions make sense
Adjust anything that doesn’t look right before you commit to permanent connections.
Step 4: Make Your Connections
For compression fittings (recommended for DIY): Slide the compression nut onto the pipe, then the compression ring (ferrule), then insert the fitting body. Hand-tighten the nut, then use a wrench to turn it an additional three-quarter to one full turn. Do not over-tighten — compression fittings seal through the deformation of the ferrule, and over-tightening can damage it.
For copper sweat (solder) fittings: Apply flux to both the pipe end and fitting socket. Heat with a torch until the flux begins to bubble, then touch solder to the joint — it should flow in by capillary action without direct flame. Allow to cool completely before disturbing.
For push-to-connect fittings: Insert the pipe end fully until it stops. A slight tug should confirm it’s locked. These are the simplest option and hold reliably, but confirm they’re rated for your water pressure.
Apply Teflon tape to all threaded connections — wrap clockwise (in the direction you’ll be tightening the fitting) with two to three layers. This applies to the filter’s inlet/outlet ports if they’re threaded.
Step 5: Install the Bypass and Shutoff Valves
Mount the three ball valves in your bypass configuration as described above. Ball valves are straightforward: lever parallel to the pipe = open; lever perpendicular = closed. Label them — “Filter In,” “Filter Out,” and “Bypass” — so whoever services the system in the future doesn’t have to puzzle it out.
If your system includes a sediment pre-filter housing, this typically installs upstream (before) the main filter vessel. Confirm the housing’s flow direction arrow is pointing in the correct direction before making permanent connections.
Mount the filter system’s bracket to the wall using appropriate anchors for your wall type. Confirm it’s level.
Step 6: Restore Water Slowly and Inspect Every Joint
This is the most important step to get right. Do not crank the main valve open all at once.
Open the main shutoff valve slowly — a quarter turn at a time — allowing pressure to build gradually. Watch every connection point as pressure increases. Have dry towels pressed against joints so you can feel dampness before it becomes a visible drip.
Once the system is fully pressurized, methodically inspect every fitting, every threaded connection, and both filter housing o-rings. Run your fingers around each one. A successful installation is bone-dry at every point.
If you find a drip at a compression fitting, shut off the water and tighten the fitting slightly. If a soldered joint is weeping, it needs to be re-done — drain the line, reheat to melt the old solder, clean and reflux, and try again. Don’t try to solder a leaking joint while it’s wet.
Open each bypass valve in turn to confirm water flows as expected in both filter and bypass modes.
Making the Installation Easier on Yourself
Not all whole-house filter systems are created equal from an installation standpoint — and the difference between a well-engineered system and a budget alternative is felt most acutely during installation day.
Systems with unlabeled ports, inconsistent thread standards, missing fittings, or instructions translated imperfectly from another language can turn a three-hour project into a frustrating full day. The fittings don’t quite align, the instructions reference parts that don’t appear to be in the box, and you end up improvising connections that should have been straightforward.
The SpringWell CF Whole House Filter consistently stands out in this regard. Color-coded inlet and outlet connections eliminate the most common installation error (reversed flow direction) before it happens. The pre-assembled components reduce the number of field connections required, and the included instructions are genuinely clear — diagrams that match the actual parts in the box, in the right sequence. In hands-on testing against competing systems, the SpringWell CF consistently reduced installation time compared to similarly-priced alternatives, which matters when you’re under a house with a pipe cutter and a bucket on the floor.
For a first-time whole-house filter installation, that kind of thoughtful engineering isn’t a luxury — it’s insurance.
👉 Read the full SpringWell CF review for specs, flow rate data, filter longevity, and a detailed look at what comes in the box.
When to Hire a Pro
This is a DIY-friendly project, but a few circumstances warrant calling a licensed plumber instead:
- Your main supply line is galvanized steel — cutting and fitting galvanized pipe requires threading tools most homeowners don’t own and is better left to a professional.
- You don’t have a clear, accessible installation point — if your main line runs through a finished wall, a slab, or an awkward crawl space with no room to work, the labor complexity changes the calculation.
- You’re not comfortable with any of the steps above — there’s no shame in this. A plumber can install a whole-house filter in one to two hours, and many filter manufacturers maintain installer networks.
- Your local code requires permitted plumbing work — some jurisdictions require a permit for work on the main supply line. Check before you start.
The Bottom Line
Installing a whole-house water filter is a genuine weekend DIY project — achievable in an afternoon with basic plumbing skills, the right tools, and a methodical approach. Plan the location carefully, install a bypass valve, dry-fit before committing to permanent connections, and restore pressure slowly while inspecting every joint.
The payoff is clean, filtered water from every outlet in your home, the satisfaction of having done it yourself, and the knowledge that your plumbing, appliances, and family are protected from whatever was in that water before.
