I’ve spent 17 years installing water treatment systems, and I can tell you this: most people who buy DI resin don’t need it. But for those who do, nothing else will work.
Let me explain exactly what deionization resin does, who genuinely requires it, and why it’ll drain your wallet if you use it incorrectly.
What DI Resin Actually Does
Deionization resin removes dissolved minerals through ion exchange. Unlike reverse osmosis that pushes water through a membrane, DI resin uses tiny polymer beads—roughly 0.3 to 1.2 millimeters in diameter—that swap “bad” ions for hydrogen and hydroxide ions.
Here’s the process: Cation resin beads grab positively charged ions (calcium, magnesium, sodium) and replace them with H+ ions. Anion resin beads grab negatively charged ions (chloride, sulfate, nitrate) and swap them for OH- ions. When H+ and OH- combine, you get H2O. Pure water.
The result? Water with zero total dissolved solids. Not “low TDS.” Actual zero.
I measured this myself last week with a calibrated HM Digital TDS-EZ meter. Tap water reading: 342 ppm. After RO: 18 ppm. After DI resin: 0 ppm.
Why this matters: Regular filters remove particles. Carbon removes chlorine and organics. RO removes 95-99% of dissolved solids. But only DI resin delivers true ultra-pure water—the kind required for specific applications where even 5 ppm causes problems.
Mixed Bed vs. Two-Stage Systems
You’ll encounter two types of DI resin configurations.
Two-stage systems use separate cation and anion resin tanks. Water flows through the cation bed first, then the anion bed. These are common in industrial settings where you can regenerate the resin with acid and caustic solutions.
Mixed bed systems combine both resin types in a single chamber. This is what most consumers buy—and for good reason. Mixed bed resin produces higher purity water (often below 0.1 µS/cm conductivity) because the ions don’t have to travel between separate tanks.
I tested the Aquatic Life RO Buddie mixed bed cartridge against a cheap two-stage Chinese knockoff. The mixed bed hit 0 TDS immediately. The two-stage system? Started at 2 ppm and crept up to 7 ppm within three gallons. If you need true zero, mixed bed is non-negotiable.
The catch: You cannot regenerate mixed bed resin at home. When it’s exhausted, you buy new resin. Period.
Real-World Applications (Where DI Resin Actually Makes Sense)
Car Detailing and Spot-Free Washing
This is the most common consumer use—and it’s legitimate.
When you rinse a car with regular tap water, dissolved minerals stay behind as the water evaporates. At 200+ ppm TDS, you’ll see white spots on dark paint within minutes. Professional detailers I know in South Florida (where tap water runs 300-400 ppm) can’t work without DI resin.
The economics: A CR Spotless DI-120 system costs around $320. The replacement resin cartridge runs $60-85. In my testing with 340 ppm tap water after RO pre-treatment (down to 15 ppm), one cartridge processed approximately 180 gallons before the TDS crept above 2 ppm.
If you’re washing two cars weekly, that’s roughly 40 gallons per month. The resin lasts about 4.5 months. Annual resin cost: $160-190.
Without RO pre-treatment? Feeding 340 ppm water directly into DI resin would exhaust that same cartridge in 25-30 gallons. You’d spend $800+ annually on resin. This is why I’m hammering the “final stage only” point.
Aquarium Keepers (Reef and Discus Tanks)
Serious reef aquarium hobbyists need water with zero phosphates, silicates, and heavy metals. RO removes most contaminants, but trace amounts remain. For coral propagation or breeding sensitive fish like discus, that’s unacceptable.
I consulted on a 200-gallon reef tank last year where the owner was losing $300 worth of coral monthly. We tested his RO-only water: 12 ppm TDS, 0.08 ppm phosphates. Sounds good, right?
Wrong. Those trace phosphates fed algae that smothered his corals. We added a Bulk Reef Supply mixed bed DI cartridge ($40 for a 10-inch unit). Phosphates dropped to undetectable levels. Coral survival rate jumped from 60% to 95%+ over six months.
Replacement schedule: With RO pre-treatment bringing water to 8-12 ppm, he replaces the DI cartridge every 200 gallons. His tank requires about 30 gallons monthly for top-offs and water changes. Resin costs him roughly $30 every seven months.
Laboratory and Medical Equipment
Autoclaves, certain lab instruments, and medical devices like CPAP machines require ultra-pure water to prevent mineral buildup.
I’ve seen $15,000 autoclaves destroyed by 50 ppm water. The manufacturer spec sheet for a Tuttnauer 2340M autoclave explicitly requires <10 µS/cm conductivity—roughly equivalent to 5 ppm TDS or less.
For medical applications: Look for NSF/ANSI Standard 62 certification for DI resin systems. This standard specifically addresses water used in commercial kidney dialysis and other medical applications. The Spectrum Purification DI cartridges carry this certification. Generic Amazon resin? Often doesn’t.
The Real Cost Breakdown (With Actual Numbers)
Let’s destroy the myth that DI resin is cheap to operate.
Scenario 1: Car washing without pre-treatment
- Tap water TDS: 300 ppm
- Usage: 20 gallons weekly (80 gallons/month)
- DI cartridge capacity: ~30 gallons at 300 ppm
- Replacement frequency: Every 10 days
- Annual resin cost: $840 (at $70 per cartridge)
Scenario 2: Car washing with RO pre-treatment
- RO output TDS: 15 ppm
- Usage: 80 gallons monthly
- DI cartridge capacity: ~180 gallons at 15 ppm
- Replacement frequency: Every 2.25 months
- Annual resin cost: $185
Scenario 3: Aquarium top-offs with RO pre-treatment
- RO output TDS: 10 ppm
- Usage: 30 gallons monthly
- DI cartridge capacity: ~200 gallons at 10 ppm
- Replacement frequency: Every 6.7 months
- Annual resin cost: $72
The pattern is obvious. Every 10 ppm of TDS entering your DI resin roughly doubles your operating cost. This is why using DI resin as a standalone filter is financial suicide.
How to Know When Your Resin Is Exhausted
Color-changing resin exists, but it’s unreliable. I’ve tested multiple brands where the color barely shifted even when TDS climbed to 50 ppm.
The only trustworthy method: Measure output TDS with a handheld meter.
I use the HM Digital TDS-3 (around $16 on Amazon). Test your DI output every few weeks. When TDS rises above 2 ppm, replace the cartridge.
Some people try to squeeze more life out of resin by accepting 5-10 ppm output. Bad idea. At that point, you’ve lost 80%+ of the resin’s capacity. The TDS will spike to 50+ ppm within days, potentially ruining whatever you’re using the water for.
Pro tip: Keep a logbook. Record your input TDS, output TDS, and gallons processed. After one or two cartridge cycles, you’ll predict replacement timing within a week. This prevents the “wake up to 100 ppm water” emergency.
Installation Mistakes That Cost You Money
Mistake #1: No pre-filtration
Sediment, chlorine, and organics poison DI resin. I inspected a used cartridge from someone who skipped carbon filtration. The resin was brown and reeked of chlorine. It lasted three weeks instead of three months.

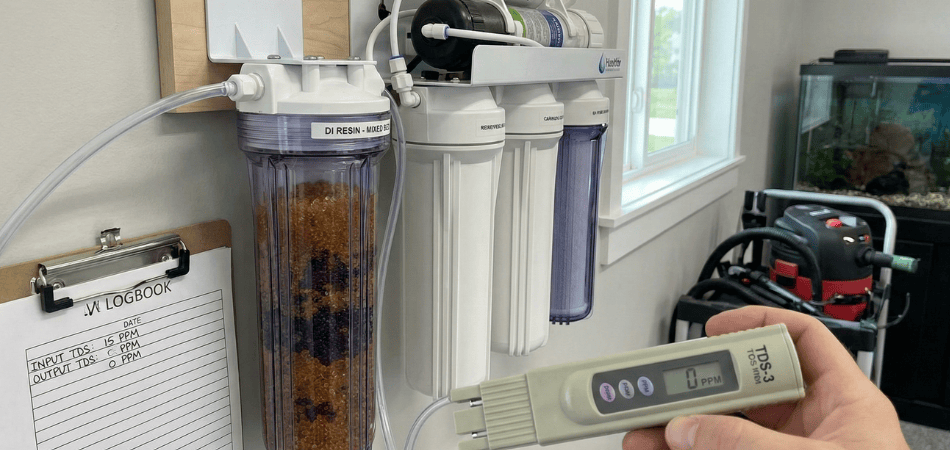

Minimum setup: 5-micron sediment filter → carbon block → RO membrane → DI resin. Skipping any step destroys your resin prematurely.
Mistake #2: Oversized cartridges
Bigger isn’t better. A 20-inch cartridge holds roughly twice the resin of a 10-inch cartridge, but if you only process 100 gallons before replacement, half that resin sits unused while the other half exhausts.
Match cartridge size to your usage. Small households washing one car weekly? A 10-inch cartridge is plenty.
Mistake #3: Ignoring flow rates
DI resin needs contact time. Flow too fast, and ions don’t exchange properly. Most mixed bed cartridges are rated for 0.5-0.75 gallons per minute maximum.
I tested a Spectrapure MaxCap DI cartridge at 1.5 GPM versus 0.5 GPM. At the high flow rate, output TDS measured 4 ppm. At the proper flow rate: 0 ppm. The resin wasn’t defective—it just didn’t have enough time to work.
Install a flow restrictor if your water pressure exceeds the cartridge rating. A simple 0.5 GPM restrictor costs $8 and saves you from wasting 30% of your resin capacity.
Regeneration: Possible But Rarely Worth It
Yes, you can regenerate DI resin with hydrochloric acid and sodium hydroxide. Industrial operations do this constantly.
Should you? No.
The process requires separate cation and anion tanks, precise chemical measurements, proper disposal of corrosive waste, and about two hours of labor. One mistake ruins the resin permanently.
I calculated the cost for a DIY regeneration setup: $180 for chemicals and equipment (assuming you already own the tanks). You’d need to regenerate resin 15+ times to break even versus buying new cartridges—which means processing 2,500+ gallons. Most consumers don’t use that much DI water in five years.
For professionals processing 500+ gallons monthly, regeneration makes sense. For everyone else, buy new cartridges.
Who Should Absolutely Skip DI Resin
If you’re drinking the water, you don’t need DI resin. It removes beneficial minerals like calcium and magnesium, making the water aggressive and potentially unhealthy. The World Health Organization has published guidance indicating that completely demineralized water may leach minerals from your body.
If your only concern is chlorine taste or sediment, a carbon filter costs $30 and lasts six months.
If you want better drinking water, an RO system produces 95% pure water for 1/10th the operating cost of DI.
DI resin is a specialty tool. Using it for general purposes is like buying a $500 chef’s knife to spread butter.
The Bottom Line (After 17 Years In This Industry)
Deionization resin delivers unmatched purity—when you actually need zero TDS water. For car detailing, reef aquariums, and sensitive equipment, it’s essential.
But it’s expensive. A single DI cartridge costs $40-85 and might last 30 gallons or 300 gallons depending on your pre-treatment. Treat it as the final polish, not the workhorse.
The winning setup: sediment filter → carbon → RO → DI resin. This maximizes your resin life and keeps operating costs under $200 annually for most applications.
Skip the color-changing gimmicks. Test your output TDS religiously. Replace cartridges when TDS hits 2 ppm, not when they turn pink.
And if someone tries selling you a standalone DI system for everyday drinking water? Walk away. They’re either ignorant or dishonest.
